Precision Twist Drill

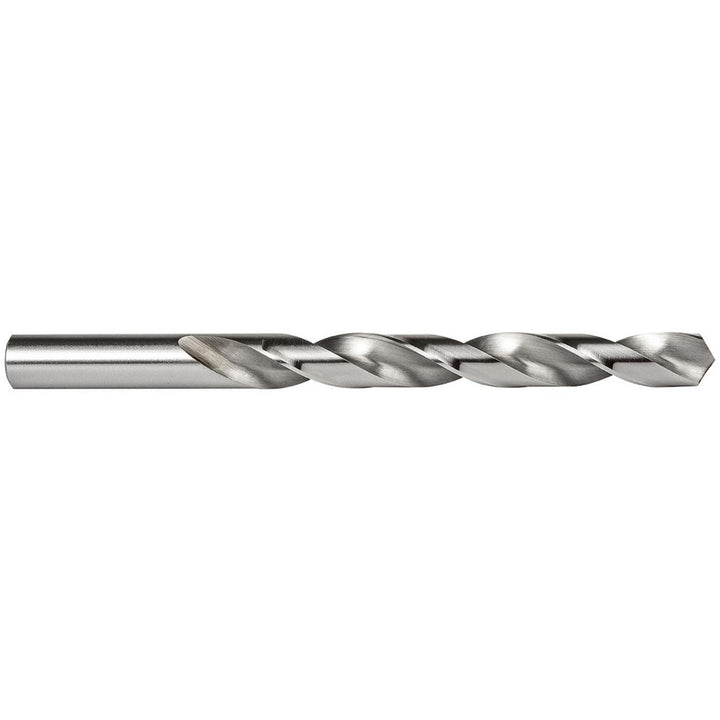

#20 High Speed Steel Drill Bit, 118° point - Precision Twist Drill 5998996
MFR# 5998996Series R10P-R15P-R18P
$2.24List $2.87
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Precision Twist Drill 5998996 is a #20 High Speed Steel drill bit, 118° point. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material. 2-1/8 flute length, 3-1/4in overall length. Series R10P-R15P-R18P.
Specifications
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size0.1610
Drill bit size range0.1500 - 0.2000
Drill bit size wire#20
Drill point angle degrees118
Flute by diameter ratio13xD
Flute length in2-1/8
Flute typeSpiral
Maximum drilling depth in2-1/8
Number of flats0
Number of flutes2
Overall length in3-1/4in
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter0.1610
Shank length in1-1/8
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
