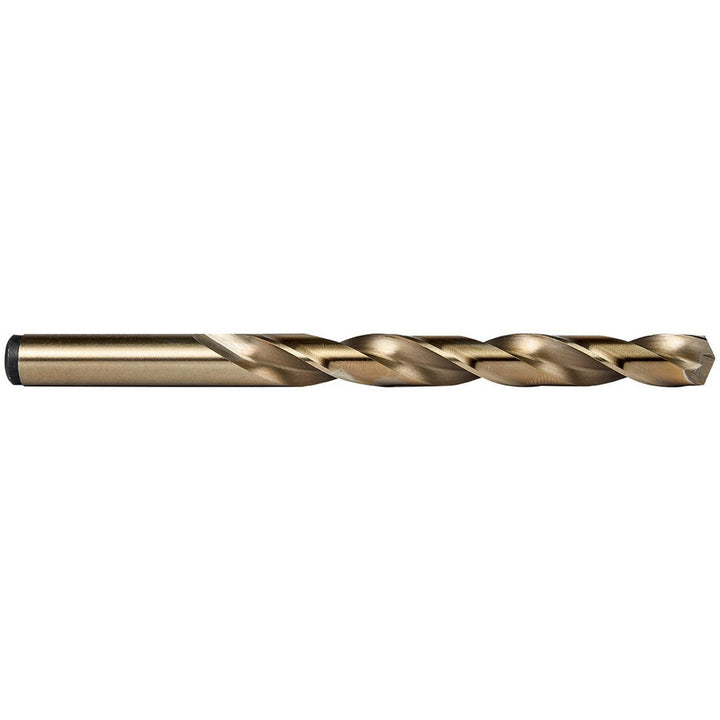

Letter N Cobalt Drill Bit, Straw, 135° point - Precision Twist Drill 5999044

Precision Twist Drill

Letter N Cobalt Drill Bit, Straw, 135° point - Precision Twist Drill 5999044

MFR# 5999044Series R10CO-R15CO-R18CO

$11.53List $14.78 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingStraw

Description

The Precision Twist Drill 5999044 is a Letter N Cobalt drill bit with a Straw finish, 135° point. Suited for steel. 3-1/16 flute length, 4-3/8 overall length. Series R10CO-R15CO-R18CO.

Specifications

Coating finishStraw
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size0.3020
Drill bit size letterN
Drill bit size range0.3000 - 0.3500
Drill point angle degrees135
Flute by diameter ratio10xD
Flute length in3-1/16
Flute typeRegular Spiral
Maximum drilling depth in3-1/16
Number of flats0
Number of flutes2
Overall length in4-3/8
Point typeStandard
Primary workpiece materialSteel
Shank diameter0.3020
Shank length in1-5/16
Shank typeStraight
Specification designationNAS
Specification numberNAS 907
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
