Precision Twist Drill

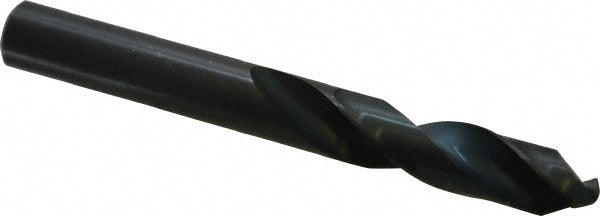

Letter V High Speed Steel Screw Machine Drill Bit, Coated, 135° point - Precision Twist Drill 5999047
MFR# 5999047Series R42C
$9.44List $12.10
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingCoated
Description
The Precision Twist Drill 5999047 is a Letter V High Speed Steel Screw Machine drill bit with a Coated finish, 135° point. Suited for titanium. 1-7/8 flute length, 3-1/4 overall length. Series R42C.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeHeavy Duty
Drill bit size0.3770
Drill bit size letterV
Drill bit size range0.3500 to 0.4000
Drill length typeScrew Machine
Drill point angle135
Flute by diameter ratio2.5xD
Flute length in1-7/8
Flute typeSpiral
Overall length in3-1/4
Point typeSplit
Primary workpiece materialTitanium
Shank typeStraight-Cylindrical
Specification designationANSI; NAS
Specification numberNAS 907
Spiral typeRegular
StandardsANSI
Tool materialHigh Speed Steel
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
