Precision Twist Drill
#44 High Speed Steel Drill Bit, 118° point - Precision Twist Drill 5999070
MFR# 5999070Series R10P-R15P-R18P
$1.76List $2.26
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description

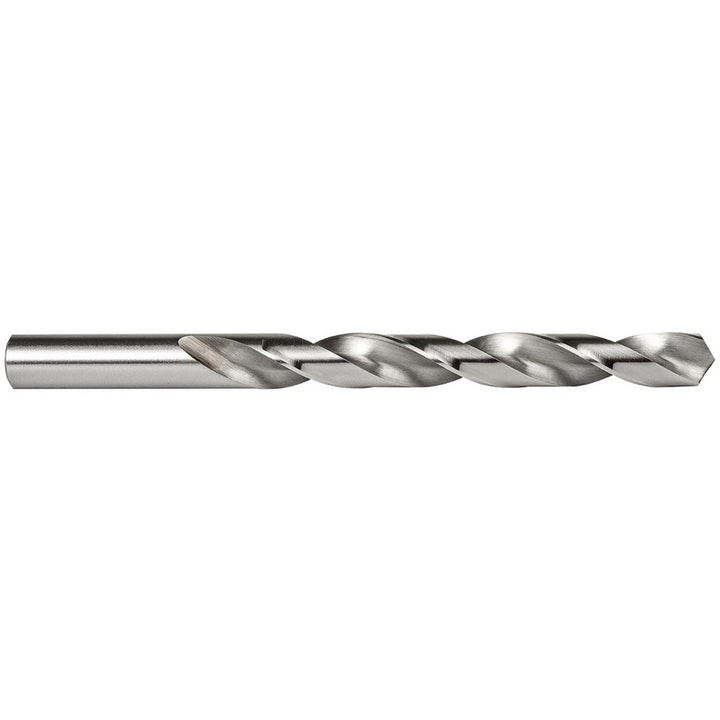

The Precision Twist Drill 5999070 is a #44 High Speed Steel drill bit, 118° point. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material. 1-1/8 flute length, 2-1/8in overall length. Series R10P-R15P-R18P.
Specifications
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size0.0860
Drill bit size range0.0500 - 0.1000
Drill bit size wire#44
Drill point angle degrees118
Flute by diameter ratio13xD
Flute length in1-1/8
Flute typeSpiral
Maximum drilling depth in1-1/8
Number of flats0
Number of flutes2
Overall length in2-1/8in
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter0.0860
Shank length in1
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
