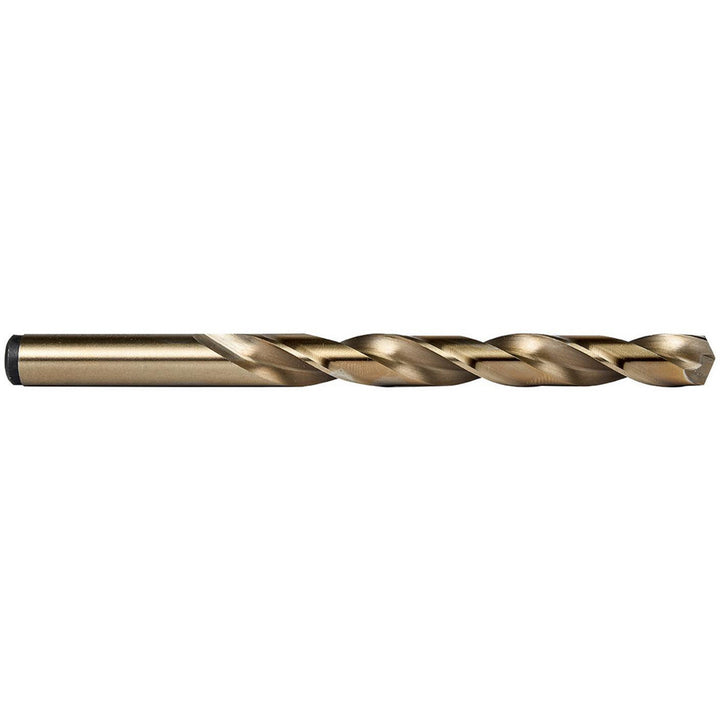

Letter U Cobalt Drill Bit, Straw, 135° point - Precision Twist Drill 5999072

Precision Twist Drill

Letter U Cobalt Drill Bit, Straw, 135° point - Precision Twist Drill 5999072

MFR# 5999072Series R10CO-R15CO-R18CO

$17.12List $21.95 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingStraw

Description

The Precision Twist Drill 5999072 is a Letter U Cobalt drill bit with a Straw finish, 135° point. Suited for steel. 3-5/8 flute length, 5 overall length. Series R10CO-R15CO-R18CO.

Specifications

Coating finishStraw
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size0.3680
Drill bit size letterU
Drill bit size range0.3500 - 0.4000
Drill point angle degrees135
Flute by diameter ratio10xD
Flute length in3-5/8
Flute typeRegular Spiral
Maximum drilling depth in3-5/8
Number of flats0
Number of flutes2
Overall length in5
Point typeStandard
Primary workpiece materialSteel
Shank diameter0.3680
Shank length in1-3/8
Shank typeStraight
Specification designationNAS
Specification numberNAS 907
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
