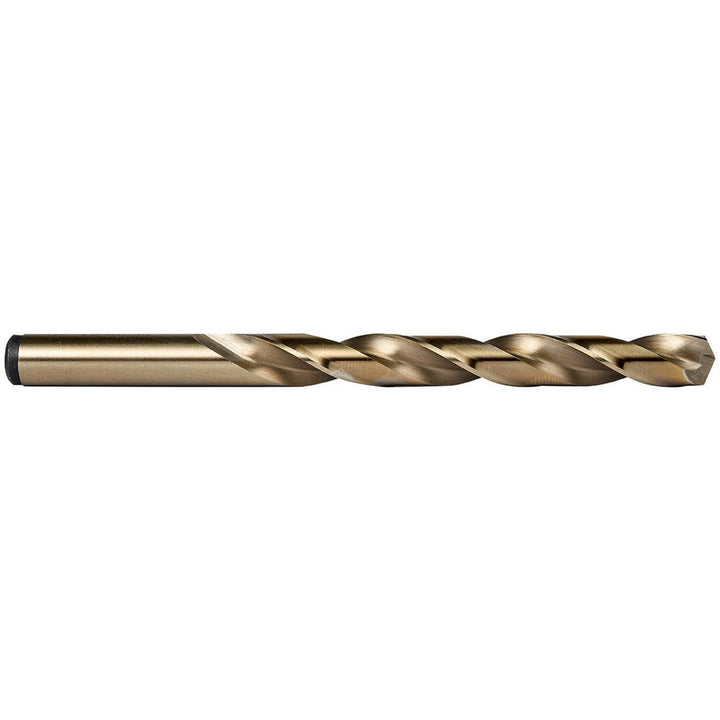

Letter Y Cobalt Drill Bit, Straw, 135° point - Precision Twist Drill 5999084

Precision Twist Drill

Letter Y Cobalt Drill Bit, Straw, 135° point - Precision Twist Drill 5999084

MFR# 5999084Series R10CO-R15CO-R18CO

$20.02List $25.68 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingStraw

Description

The Precision Twist Drill 5999084 is a Letter Y Cobalt drill bit with a Straw finish, 135° point. Suited for steel. 3-7/8 flute length, 5-1/4 overall length. Series R10CO-R15CO-R18CO.

Specifications

Coating finishStraw
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size0.4040
Drill bit size letterY
Drill bit size range0.4000 - 0.5000
Drill point angle degrees135
Flute by diameter ratio10xD
Flute length in3-7/8
Flute typeRegular Spiral
Maximum drilling depth in3-7/8
Number of flats0
Number of flutes2
Overall length in5-1/4
Point typeStandard
Primary workpiece materialSteel
Shank diameter0.4040
Shank length in1-3/8
Shank typeStraight
Specification designationNAS
Specification numberNAS 907
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
