Precision Twist Drill

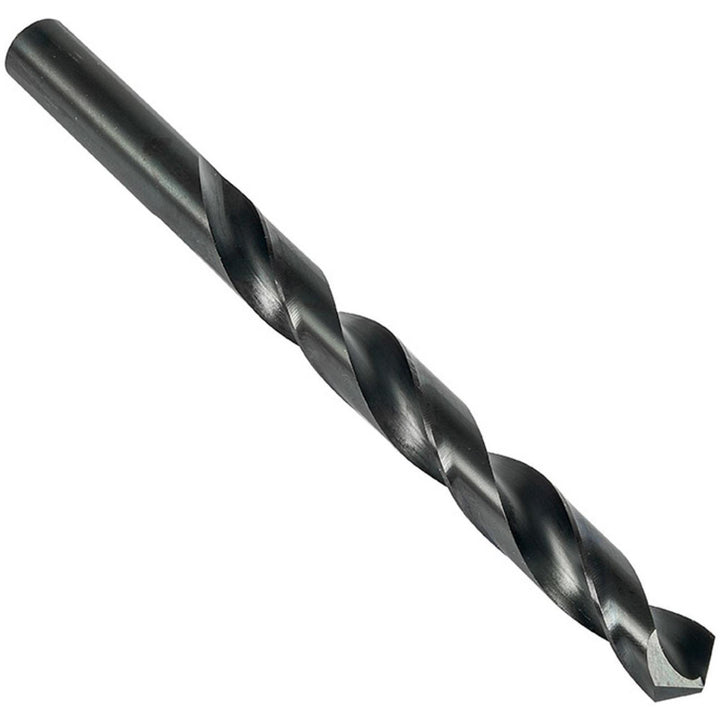

#26 High Speed Steel Drill Bit, Steam Oxide, 135° point - Precision Twist Drill 5999110
MFR# 5999110Series R10B-R15B-R18B
$2.41List $3.09
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingSteam Oxide
Description
The Precision Twist Drill 5999110 is a #26 High Speed Steel drill bit with a Steam Oxide finish, 135° point. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material. 1-7/8 flute length, 3in overall length. Series R10B-R15B-R18B.
Specifications
Coating finishSteam Oxide
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size0.1470
Drill bit size range0.1000 - 0.1500
Drill bit size wire#26
Drill point angle degrees135
Flute by diameter ratio13xD
Flute length in1-7/8
Flute typeSpiral
Maximum drilling depth in1-7/8
Number of flats0
Number of flutes2
Overall length in3in
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter0.1470
Shank length in1-1/8
Shank typeStraight-Cylindrical
Specification designationNAS
Specification numberNAS 907
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
