Precision Twist Drill

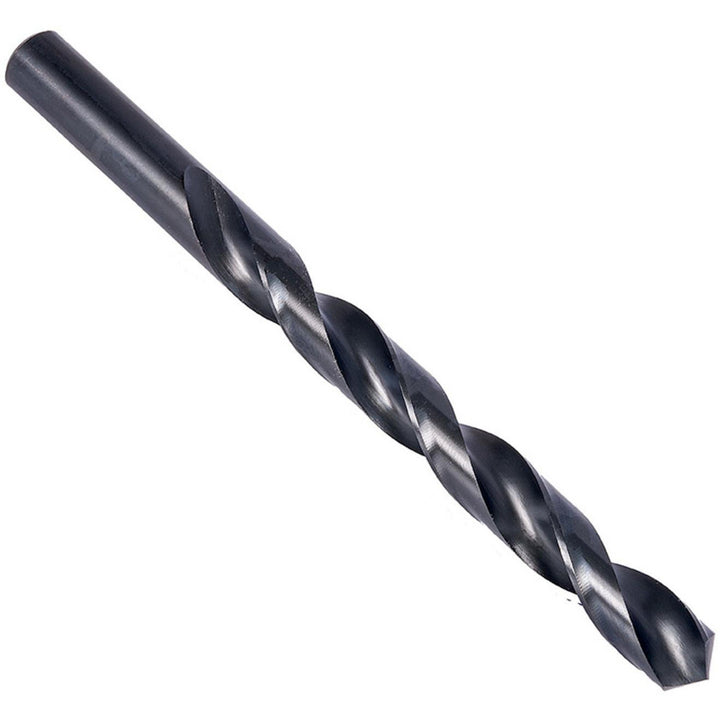

#48 High Speed Steel Drill Bit, Steam Oxide, 118° point - Precision Twist Drill 5999115
MFR# 5999115Series R10-R15-R18
$1.80List $2.31
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingSteam Oxide
Description
The Precision Twist Drill 5999115 is a #48 High Speed Steel drill bit with a Steam Oxide finish, 118° point. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material. 1 flute length, 2in overall length. Series R10-R15-R18.
Specifications
Coating finishSteam Oxide
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size0.0760
Drill bit size range0.0500 - 0.1000
Drill bit size wire#48
Drill point angle degrees118
Flute by diameter ratio13xD
Flute length in1
Flute typeSpiral
Maximum drilling depth in1
Number of flats0
Number of flutes2
Overall length in2in
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter0.0760
Shank length in1
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
