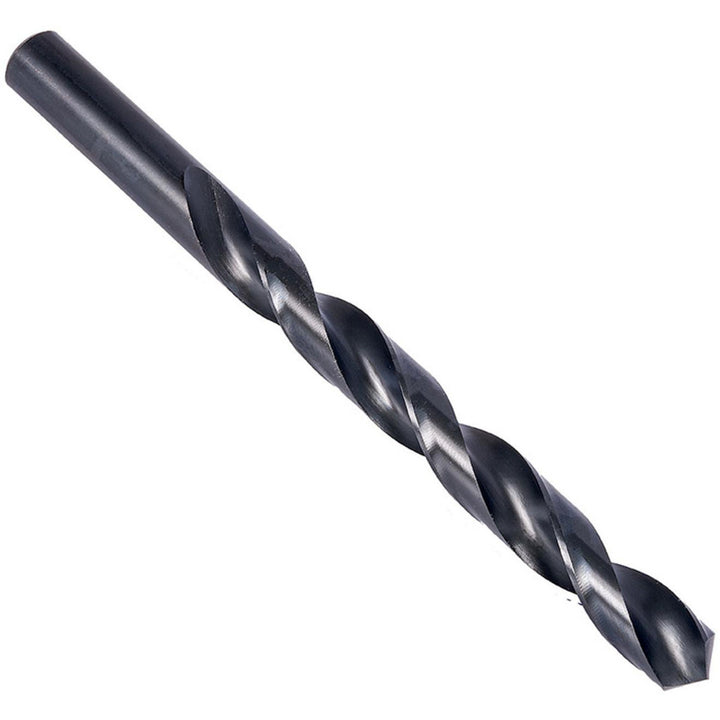

#6 High Speed Steel Drill Bit, Steam Oxide, 118° point - Precision Twist Drill 5999134

Precision Twist Drill

#6 High Speed Steel Drill Bit, Steam Oxide, 118° point - Precision Twist Drill 5999134

MFR# 5999134Series R10-R15-R18

$3.37List $4.32 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingSteam Oxide

Description

The Precision Twist Drill 5999134 is a #6 High Speed Steel drill bit with a Steam Oxide finish, 118° point. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material. 2-1/2 flute length, 3-3/4in overall length. Series R10-R15-R18.

Specifications

Coating finishSteam Oxide
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size0.2040
Drill bit size range0.2000 - 0.2500
Drill bit size wire#6
Drill point angle degrees118
Flute by diameter ratio12xD
Flute length in2-1/2
Flute typeSpiral
Maximum drilling depth in2-1/2
Number of flats0
Number of flutes2
Overall length in3-3/4in
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter0.2040
Shank length in1-1/4
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
