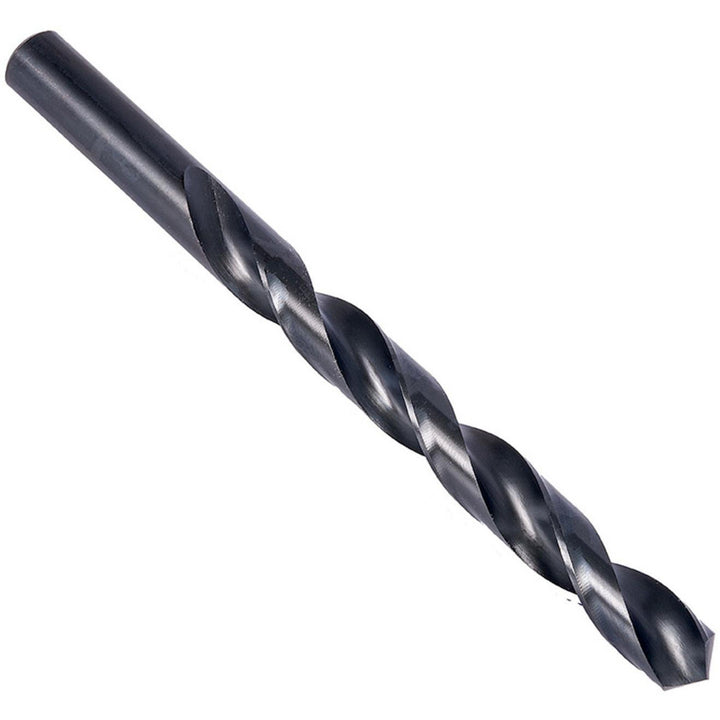

#75 High Speed Steel Drill Bit, Steam Oxide, 118° point - Precision Twist Drill 5999186

Precision Twist Drill

#75 High Speed Steel Drill Bit, Steam Oxide, 118° point - Precision Twist Drill 5999186

MFR# 5999186Series R10-R15-R18

$2.68List $3.43 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingSteam Oxide

Description

The Precision Twist Drill 5999186 is a #75 High Speed Steel drill bit with a Steam Oxide finish, 118° point. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material. 1/4 flute length, 1in overall length. Series R10-R15-R18.

Specifications

Coating finishSteam Oxide
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size0.0210
Drill bit size range0.0000 - 0.0500
Drill bit size wire#75
Drill point angle degrees118
Flute by diameter ratio12xD
Flute length in1/4
Flute typeSpiral
Maximum drilling depth in1/4
Number of flats0
Number of flutes2
Overall length in1in
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter0.0210
Shank length in3/4
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
