Precision Twist Drill

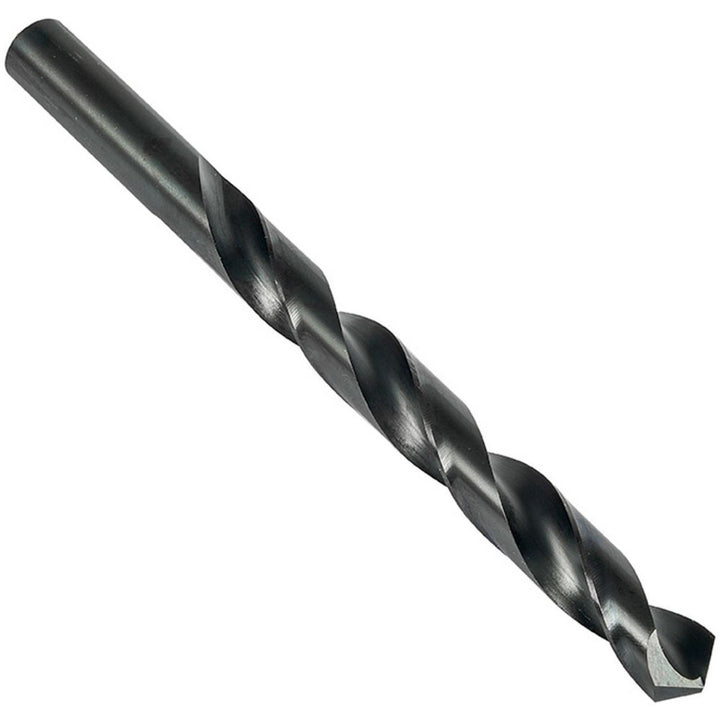

#29 High Speed Steel Drill Bit, Steam Oxide, 118° point - Precision Twist Drill 5999368
MFR# 5999368Series R10A-R15A-R18A
$2.31List $2.95
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingSteam Oxide
Description
The Precision Twist Drill 5999368 is a #29 High Speed Steel drill bit with a Steam Oxide finish, 118° point. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material. 1-3/4 flute length, 2-7/8in overall length. Series R10A-R15A-R18A.
Specifications
Coating finishSteam Oxide
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit materialHigh Speed Steel
Drill bit size0.1360
Drill bit size range0.1000 - 0.1500
Drill bit size wire#29
Drill point angle degrees118
Flute by diameter ratio13xD
Flute length in1-3/4
Flute typeSpiral
Maximum drilling depth in1-3/4
Number of flats0
Number of flutes2
Overall length in2-7/8in
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter0.1360
Shank length in1-1/8
Shank typeStraight-Cylindrical
Specification designationNAS
Specification numberNAS 907
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
