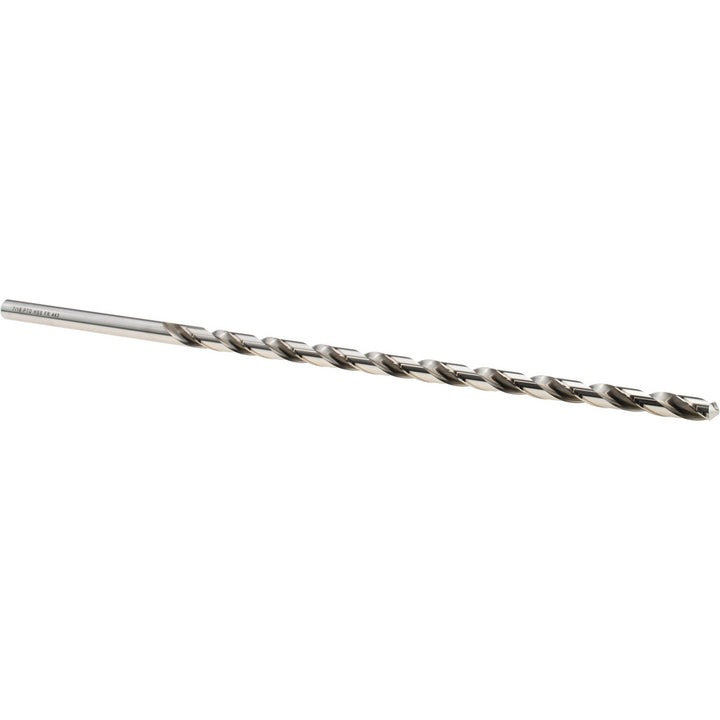

7/16" High-Speed Steel Drill Bit, 118° point - Precision Twist Drill 5999869

Precision Twist Drill

7/16" High-Speed Steel Drill Bit, 118° point - Precision Twist Drill 5999869

MFR# 5999869Series 1511

$69.24List $88.80 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size7/16
Flutes2

Description

The Precision Twist Drill 5999869 is a 7/16" High-Speed Steel drill bit, 118° point. Suited for aluminum magnesium, copper, nickel, synthetic, titanium. 11 flute length, 15 overall length. Series 1511.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit gradeGeneral Purpose
Drill bit size in7/16
Drill point angle118
Flute by diameter ratio15xD
Flute length in11
Flute typeSpiral
Number of flutes2
Overall length in15
Point typeStandard
Primary workpiece materialAluminum Magnesium; Copper; Nickel; Synthetic; Titanium
Secondary workpiece materialHardened Steel; High Strength Bronze; Magnesium; Magnesium Alloy; Malleable Iron; Nickel; Nickel Alloy; Reinforced Plastic Materials; Stainless Steel; Steel
Shank diameter in7/16
Shank length4.0000
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool materialHigh-Speed Steel
Web configurationTapered
Web thinningWeb-Thinned
