Precision Twist Drill

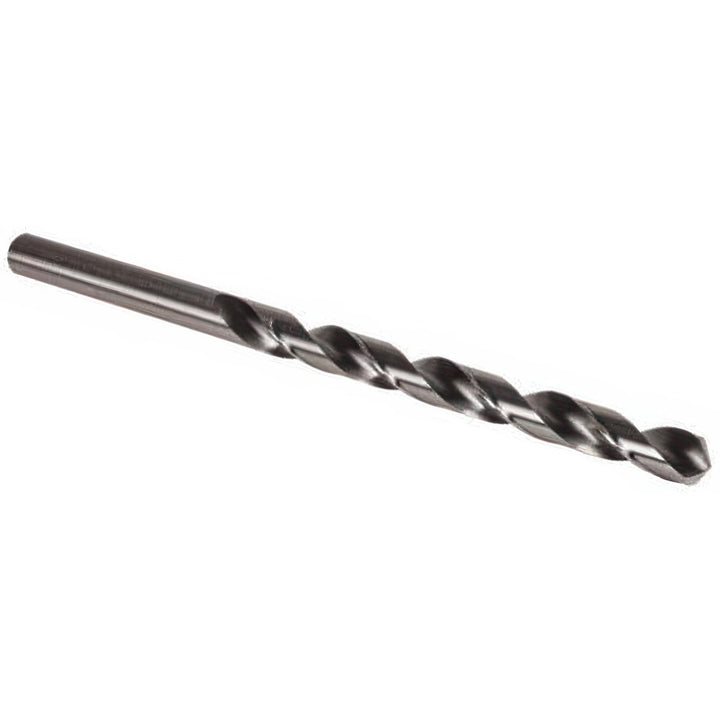

0.1220" High Speed Steel Drill Bit, 118° point - Precision Twist Drill 6000917
MFR# 6000917Series 5ATL
$8.89List $11.41
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Precision Twist Drill 6000917 is a 0.1220" High Speed Steel drill bit, 118° point. 2-23/32 flute length. Series 5ATL.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeGeneral Purpose
Drill bit size0.1220
Drill point angle degrees118
Flute length in2-23/32
Flute length x diameter ratio6xD
Flute typeSpiral
Material applicationAlloy Steel; Aluminum; Aluminum Alloy; Brass; Bronze; Carbon Steel; Cast Iron; Cermet; Copper; Graphite; Hardened Steel; High Strength Bronze; Magnesium; Magnesium Alloy; Malleable Iron; Nickel; Nickel Alloy; Reinforced Plastic Materials; Stainless Steel
Overall length4-3/16
Point typeStandard
Shank diameter0.1220
Shank length (mm)37.00
Shank typeStraight
Specification numberDIN 340
Spiral typeRegular
StandardsDIN 340
Threaded shankNo
Tool materialHigh Speed Steel
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
