Precision Twist Drill
0.1654" High Speed Steel Drill Bit, 118° point - Precision Twist Drill 6001374
MFR# 6001374Series 5ATL
$9.72List $12.46
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

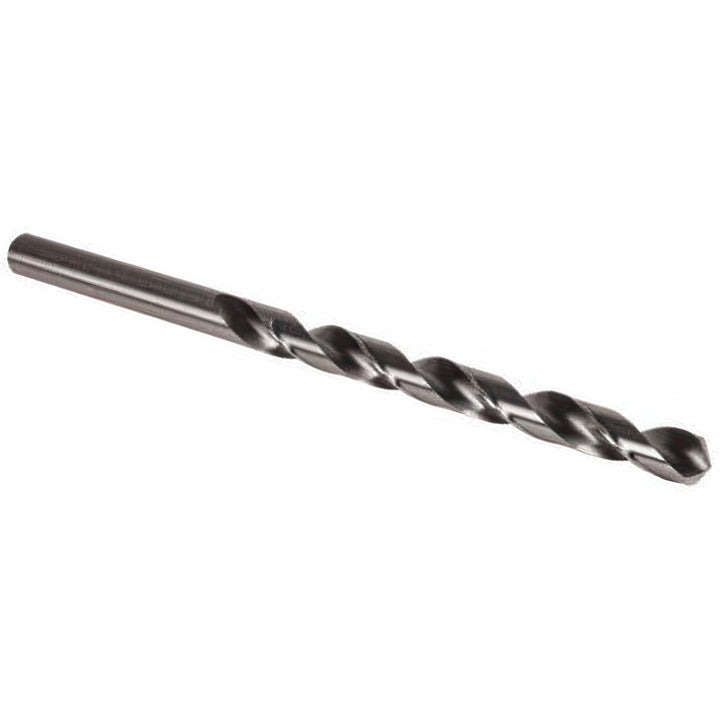

The Precision Twist Drill 6001374 is a 0.1654" High Speed Steel drill bit, 118° point. 3-1/16 flute length. Series 5ATL.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeGeneral Purpose
Drill bit size0.1654
Drill point angle degrees118
Flute length in3-1/16
Flute typeSpiral
Material applicationAlloy Steel; Aluminum; Aluminum Alloy; Brass; Bronze; Carbon Steel; Cast Iron; Cermet; Copper; Graphite; Hardened Steel; High Strength Bronze; Magnesium; Magnesium Alloy; Malleable Iron; Nickel; Nickel Alloy; Reinforced Plastic Materials; Stainless Steel
Overall length4-11/16
Point typeStandard
Shank typeStraight
Specification numberDIN 340
Spiral typeRegular
Tool materialHigh Speed Steel
Web configurationTapered
Web thinningWeb-Thinned
