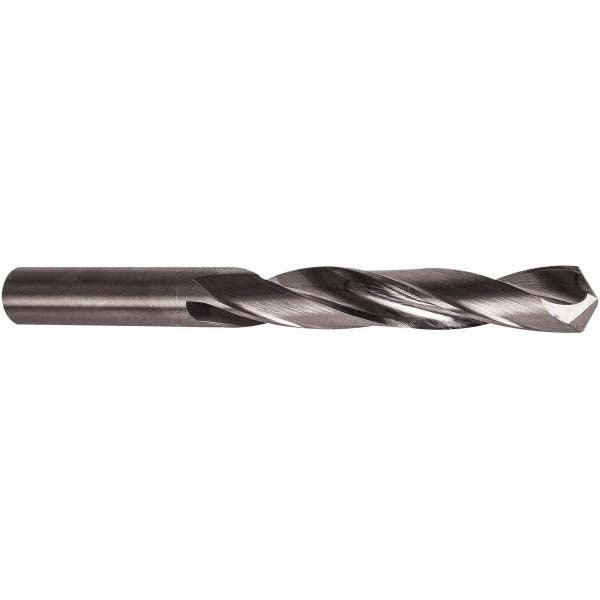

#22 High Speed Steel Drill Bit, 118° point - Precision Twist Drill 6002055

Precision Twist Drill

#22 High Speed Steel Drill Bit, 118° point - Precision Twist Drill 6002055

MFR# 6002055Series D33F-D33W-D33L-D33M

$25.13List $32.23 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

The Precision Twist Drill 6002055 is a #22 High Speed Steel drill bit, 118° point. Suited for steel, stainless steel, cast iron, non-ferrous metal, hard material. 1-3/8 flute length, 2-1/2in overall length. Series D33F-D33W-D33L-D33M.

Specifications

Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit materialHigh Speed Steel
Drill bit size0.1570
Drill bit size range0.1500 - 0.2000
Drill bit size wire#22
Drill point angle degrees118
Flute by diameter ratio9xD
Flute length in1-3/8
Flute typeSpiral
Maximum drilling depth in1-3/8
Number of flats0
Number of flutes2
Overall length in2-1/2in
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Hard Material
Shank diameter0.1570
Shank length in1-1/8in
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
