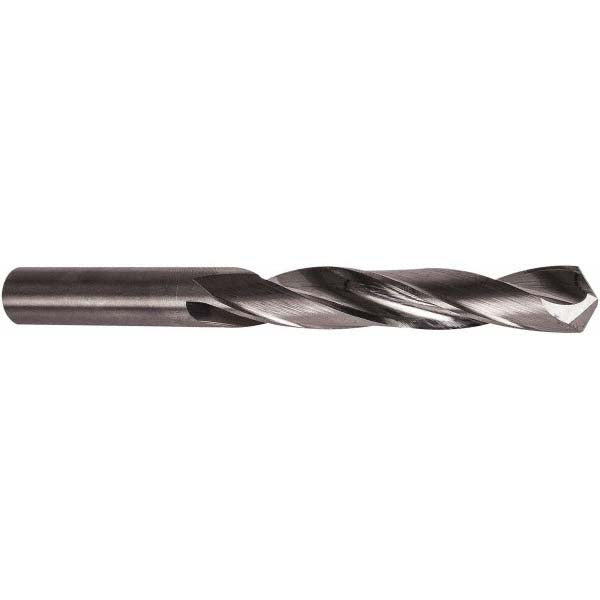

#37 High Speed Steel Drill Bit, 118° point - Precision Twist Drill 6002098

Precision Twist Drill

#37 High Speed Steel Drill Bit, 118° point - Precision Twist Drill 6002098

MFR# 6002098Series D33F-D33W-D33L-D33M

$15.57List $19.77 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

The Precision Twist Drill 6002098 is a #37 High Speed Steel drill bit, 118° point. Suited for steel, stainless steel, cast iron, non-ferrous metal, hard material. 1-1/4 flute length, 2-1/4in overall length. Series D33F-D33W-D33L-D33M.

Specifications

Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit materialHigh Speed Steel
Drill bit size0.1040
Drill bit size range0.1000 - 0.1500
Drill bit size wire#37
Drill point angle degrees118
Flute by diameter ratio12xD
Flute length in1-1/4
Flute typeSpiral
Maximum drilling depth in1-1/4
Number of flats0
Number of flutes2
Overall length in2-1/4in
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Hard Material
Shank diameter0.1040
Shank length in1in
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
