Precision Twist Drill

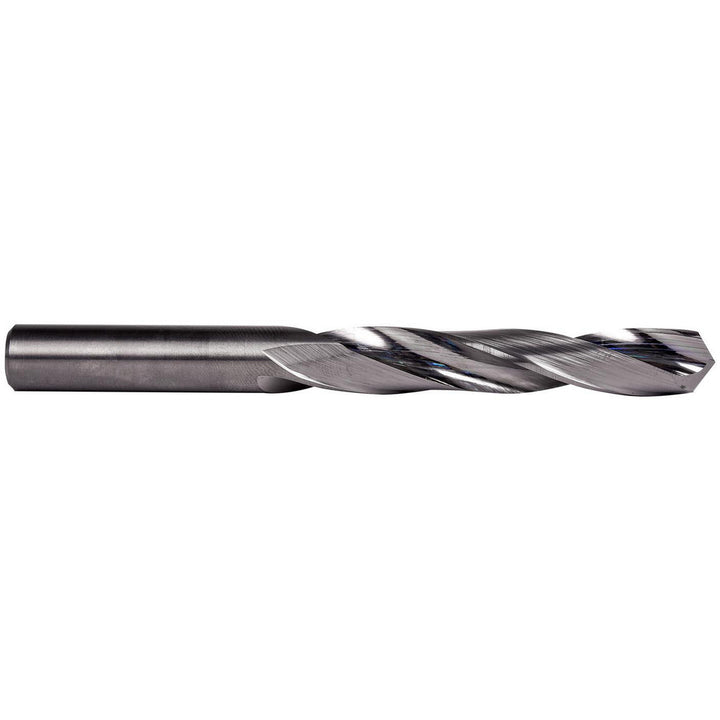

#10 High Speed Steel Drill Bit, 118° point - Precision Twist Drill 6002429
MFR# 6002429Series D33F-D33W-D33L-D33M
$27.24List $34.59
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Precision Twist Drill 6002429 is a #10 High Speed Steel drill bit, 118° point. Suited for steel, stainless steel, cast iron, non-ferrous metal, hard material. 1-5/8 flute length, 2-3/4in overall length. Series D33F-D33W-D33L-D33M.
Specifications
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit materialHigh Speed Steel
Drill bit size0.1935
Drill bit size range0.1500 - 0.2000
Drill bit size wire#10
Drill point angle degrees118
Flute by diameter ratio8xD
Flute length in1-5/8
Flute typeSpiral
Maximum drilling depth in1-5/8
Number of flats0
Number of flutes2
Overall length in2-3/4in
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Hard Material
Shank diameter0.1935
Shank length in1-1/8
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
