Precision Twist Drill

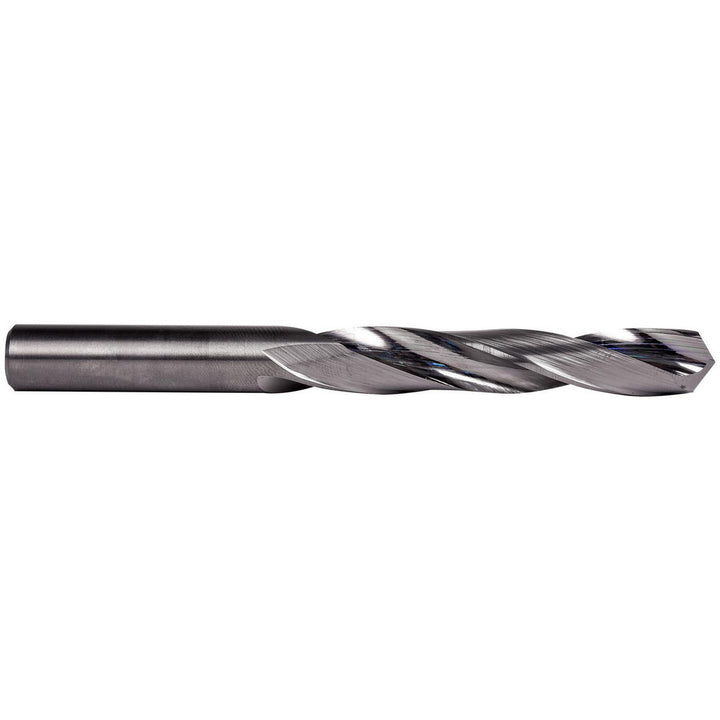

Letter O High Speed Steel Drill Bit, 118° point - Precision Twist Drill 6002757
MFR# 6002757Series D33F-D33W-D33L-D33M
$69.13List $88.66
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Precision Twist Drill 6002757 is a Letter O High Speed Steel drill bit, 118° point. Suited for steel, stainless steel, cast iron, non-ferrous metal, hard material. 2-3/8 flute length, 3-3/4in overall length. Series D33F-D33W-D33L-D33M.
Specifications
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit materialHigh Speed Steel
Drill bit size0.3161
Drill bit size letterO
Drill bit size range0.3000 - 0.3500
Drill point angle degrees118
Flute by diameter ratio8xD
Flute length in2-3/8
Flute typeSpiral
Maximum drilling depth in2-3/8
Number of flats0
Number of flutes2
Overall length in3-3/4in
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Hard Material
Shank diameter0.3161
Shank length in1-3/8
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
