ProMax

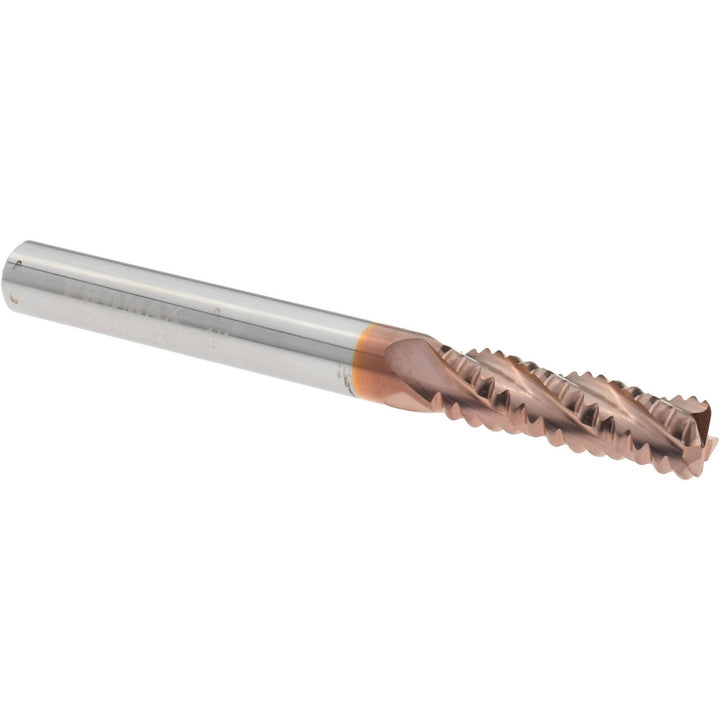

0.25" 4-Flute Solid Carbide Roughing End Mill, TiCN - ProMax 100-01612
MFR# 100-01612Series 100
$69.28List $88.86
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingTiCN
Description
The ProMax 100-01612 is a 0.25 4-flute Solid Carbide roughing end mill with a TiCN finish for longer tool life. Series 100.
Specifications
CentercuttingYes
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Length of cut0.7500
Maximum helix angle30
Mill diameter0.25
Mill diameter frac in1/4
Mill diameter tolerance+0.000000 to -0.005000 in
Number of flutes4
PitchCoarse
Shank diameter in1/4
Shank diameter tolerance-0.0001 to -0.0004 in
Single or double endSingle
