ProMax

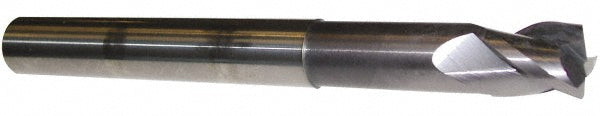

1/8" 3-Flute Solid Carbide Corner Radius End Mill, AlTiN - ProMax 106-03264

MFR# 106-03264Series 106

$144.97List $181.71 Save 20%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/8

Flutes3

MaterialSolid Carbide

CoatingAlTiN

Description

The ProMax 106-03264 is a 1/8 3-flute Solid Carbide (Micrograin) corner radius end mill with a AlTiN finish for longer tool life. 5/8 length of cut, 6 overall length. Series 106.

Specifications

CentercuttingYes

Coating finishAlTiN

Corner radius0.0200

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

Helix angle35

Length of cut in5/8

Material gradeMicrograin

Maximum helix angle35

Mill diameter in1/8

Mill diameter tolerance+0.000000 to -0.002000 in

Neck diameter0.4750

Number of flutes3

Overall length in6

Reach length in2-3/8

Shank diameter in1/2

Shank diameter tolerance-0.0001 to -0.0004 in

Single or double endSingle

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
