3/16" 2-Flute Solid Carbide Square End Mill, ZrN - ProMax 108-01226

ProMax

3/16" 2-Flute Solid Carbide Square End Mill, ZrN - ProMax 108-01226

MFR# 108-01226Series 108

$24.84List $31.85 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/16
Flutes2
MaterialSolid Carbide
CoatingZrN

Description

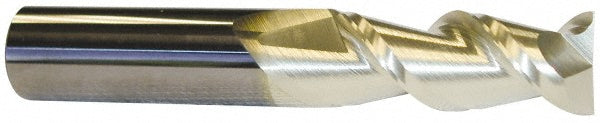

The ProMax 108-01226 is a 3/16 2-flute Solid Carbide (Micrograin) square end mill with a ZrN finish for longer tool life. 5/16 length of cut, 2 overall length. Series 108.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishZrN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle40
Length of cut in5/16
Length typeStub
Material gradeMicrograin
Mill diameter in3/16
Mill diameter tolerance+0.000/-0.002 in
Number of flutes2
Overall length in2
Shank diameter in3/16
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeSquare
Variable helixNo
Variable indexNo
