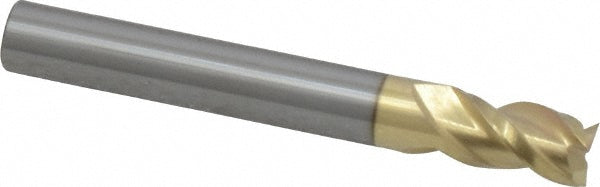

1/4" 3-Flute Solid Carbide Square End Mill, ZrN - ProMax 109-01626
MFR# 109-01626Series 109
$31.73List $40.69
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/4
Flutes3
MaterialSolid Carbide
CoatingZrN
Description
The ProMax 109-01626 is a 1/4 3-flute Solid Carbide (Micrograin) square end mill. 3/8 length of cut, 2 overall length. Series 109.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishZrN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle35
Length of cut in3/8
Length of cut range0.3000 - 0.5000
Material gradeMicrograin
Mill diameter in1/4
Mill diameter tolerance+0.000/-0.002 in
Number of flutes3
Overall length in2
Shank diameter in1/4
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeSquare
Variable helixNo
