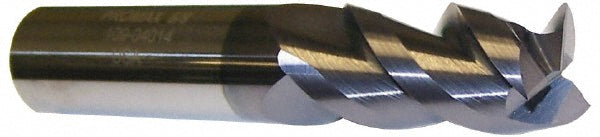

9/32" 3-Flute Solid Carbide Square End Mill, AlTiN - ProMax 109-01814

ProMax

9/32" 3-Flute Solid Carbide Square End Mill, AlTiN - ProMax 109-01814

MFR# 109-01814Series 109

$47.15List $60.48 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter9/32
Flutes3
MaterialSolid Carbide
CoatingAlTiN

Description

The ProMax 109-01814 is a 9/32 3-flute Solid Carbide (Micrograin) square end mill. 3/4 length of cut, 2-1/2 overall length. Series 109.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle35
Length of cut in3/4
Length of cut range0.7000 - 0.8000
Material gradeMicrograin
Mill diameter in9/32
Mill diameter tolerance+0.000/-0.002 in
Number of flutes3
Overall length in2-1/2
Shank diameter in5/16
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeSquare
Variable helixNo
