1/2" 3-Flute Solid Carbide Square End Mill, ZrN - ProMax 109-03226

ProMax

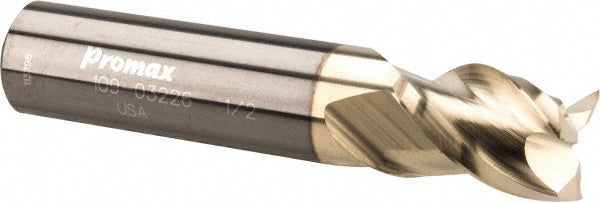

1/2" 3-Flute Solid Carbide Square End Mill, ZrN - ProMax 109-03226

MFR# 109-03226Series 109

$59.68List $76.54 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes3
MaterialSolid Carbide
CoatingZrN

Description

The ProMax 109-03226 is a 1/2 3-flute Solid Carbide (Micrograin) square end mill. 5/8 length of cut, 2-1/2 overall length. Series 109.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishZrN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle40
Length of cut in5/8
Length of cut range0.6000 - 0.7000
Length typeStub
Material gradeMicrograin
Mill diameter in1/2
Mill diameter tolerance+0.000/-0.002 in
Number of flutes3
Overall length in2-1/2
Shank diameter in1/2
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeSquare
Variable helixNo
