9/16" 3-Flute Solid Carbide Square End Mill, AlTiN - ProMax 109-03614

ProMax

9/16" 3-Flute Solid Carbide Square End Mill, AlTiN - ProMax 109-03614

MFR# 109-03614Series 109

$100.04List $128.31 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter9/16
Flutes3
MaterialSolid Carbide
CoatingAlTiN

Description

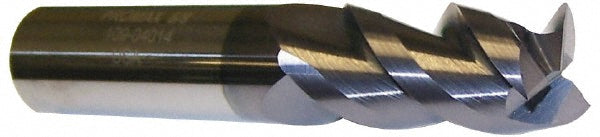

The ProMax 109-03614 is a 9/16 3-flute Solid Carbide (Micrograin) square end mill. 1-1/4 length of cut, 3-1/2 overall length. Series 109.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle40
Length of cut in1-1/4
Length of cut range1.2500 - 1.5000
Material gradeMicrograin
Mill diameter in9/16
Mill diameter tolerance+0.000/-0.002 in
Number of flutes3
Overall length in3-1/2
Shank diameter in9/16
Shank diameter tolerance-0.0001/-0.0004 in
Variable helixNo
