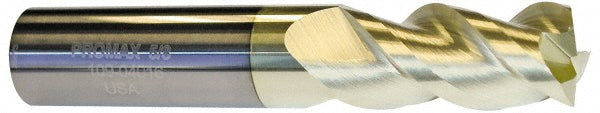

1" 3-Flute Solid Carbide Square End Mill, ZrN - ProMax 109-06416

ProMax

1" 3-Flute Solid Carbide Square End Mill, ZrN - ProMax 109-06416

MFR# 109-06416Series 109

$256.10List $328.47 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1
Flutes3
MaterialSolid Carbide
CoatingZrN

Description

The ProMax 109-06416 is a 1 3-flute Solid Carbide (Micrograin) square end mill. 1-3/4 length of cut, 4 overall length. Series 109.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishZrN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle40
Length of cut in1-3/4
Length of cut range1.5000 - 2.0000
Material gradeMicrograin
Mill diameter in1
Mill diameter tolerance+0.000/-0.002 in
Number of flutes3
Overall length in4
Shank diameter in1
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeSquare
Variable helixNo
