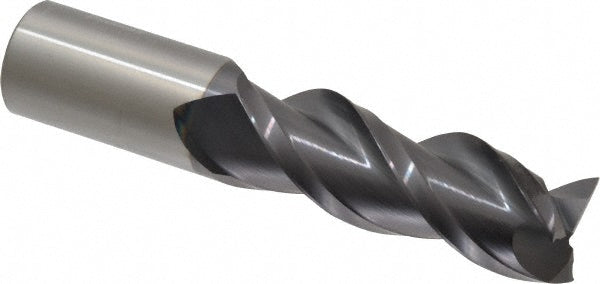

1" 3-Flute Solid Carbide Square End Mill, AlTiN - ProMax 109-06434

ProMax

1" 3-Flute Solid Carbide Square End Mill, AlTiN - ProMax 109-06434

MFR# 109-06434Series 109

$386.64List $495.88 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1
Flutes3
MaterialSolid Carbide
CoatingAlTiN

Description

The ProMax 109-06434 is a 1 3-flute Solid Carbide (Micrograin) square end mill. 2-3/4 length of cut, 5 overall length. Series 109.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle40
Length of cut in2-3/4
Length of cut range2.0000+
Material gradeMicrograin
Mill diameter in1
Mill diameter tolerance+0.000/-0.002 in
Number of flutes3
Overall length in5
Shank diameter in1
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeSquare
Variable helixNo
