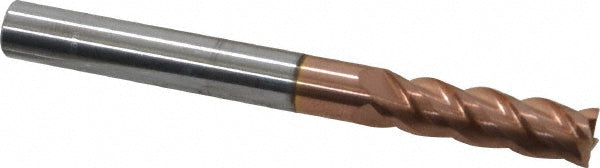

1/4" 4-Flute Solid Carbide Square End Mill, TiCN - ProMax 111-01612

MFR# 111-01612Series 111

$37.32List $47.87 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes4

MaterialSolid Carbide

CoatingTiCN

Description

The ProMax 111-01612 is a 1/4 4-flute Solid Carbide (Micrograin) square end mill. Suited for high temperature alloy, stainless steel, steel. 3/4 length of cut, 2-1/2 overall length. Series 111.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishTiCN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle40

Length of cut in3/4

Length of cut range0.7000 - 0.8000

Length typeRegular

Material gradeMicrograin

Mill diameter in1/4

Mill diameter tolerance+0.000/-0.002 in

Number of flutes4

Overall length in2-1/2

Primary workpiece materialHigh Temperature Alloy; Stainless Steel; Steel

Shank diameter in1/4

Shank diameter tolerance-0.0001/-0.0004 in

Shank typeSquare

Variable helixNo
