ProMax

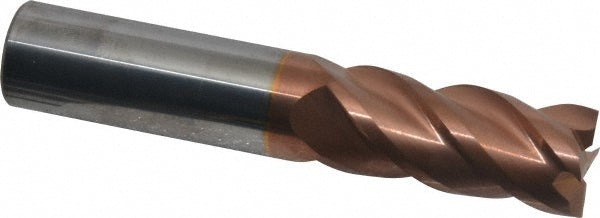

3/4" 4-Flute Solid Carbide Square End Mill, TiCN - ProMax 111-04812

MFR# 111-04812Series 111

$173.20List $222.13 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes4

MaterialSolid Carbide

CoatingTiCN

Description

The ProMax 111-04812 is a 3/4 4-flute Solid Carbide (Micrograin) square end mill. Suited for high temperature alloy, stainless steel, steel. 1-5/8 length of cut, 4 overall length. Series 111.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishTiCN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle40

Length of cut in1-5/8

Length of cut range1.5000 - 2.0000

Length typeRegular

Material gradeMicrograin

Mill diameter in3/4

Mill diameter tolerance-0.0005 to 0.000 in; -0.002 to 0.000 in

Number of flutes4

Overall length in4

Primary workpiece materialHigh Temperature Alloy; Stainless Steel; Steel

Shank diameter in3/4

Shank diameter tolerance+0.0001/-0.0004 in

Shank typeSquare

Variable helixNo
