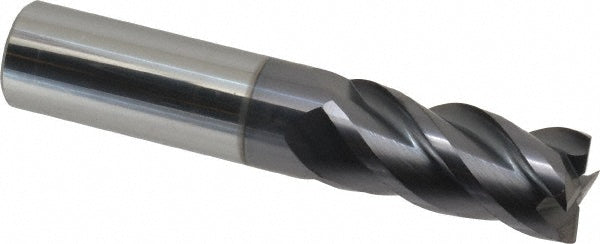

3/4" 4-Flute Solid Carbide Square End Mill, AlTiN - ProMax 111-04814

ProMax

3/4" 4-Flute Solid Carbide Square End Mill, AlTiN - ProMax 111-04814

MFR# 111-04814Series 111

$173.20List $222.13 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/4
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The ProMax 111-04814 is a 3/4 4-flute Solid Carbide (Micrograin) square end mill. 1-5/8 length of cut, 4 overall length. Series 111.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle40
Length of cut in1-5/8
Length of cut range1.5000 - 2.0000
Material gradeMicrograin
Mill diameter in3/4
Mill diameter tolerance-0.002 to +0.000 in
Number of flutes4
Overall length in4
Shank diameter in3/4
Shank diameter tolerance+0.0001/-0.004 in
Shank typeSquare
Variable helixNo
