ProMax

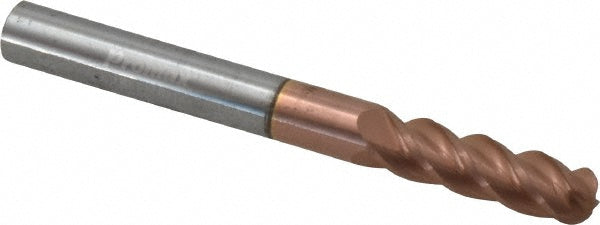

1/4" 4-Flute Solid Carbide Ball End Mill, TiCN - ProMax 116-01612

MFR# 116-01612Series 116

$30.09List $38.59 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes4

MaterialSolid Carbide

CoatingTiCN

Description

The ProMax 116-01612 is a 1/4 4-flute Solid Carbide (Micrograin) ball end mill with a TiCN finish for longer tool life. 3/4 length of cut, 2-1/2 overall length. Series 116.

Specifications

Coating finishTiCN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle40

Length of cut in3/4

Material gradeMicrograin

Mill diameter in1/4

Mill diameter tolerance+0.000/-0.002 in

Number of flutes4

Overall length in2-1/2

Shank diameter in1/4

Shank diameter tolerance-0.0001/-0.0004 in

Single or double endSingle

Variable helixNo

Variable indexNo
