ProMax

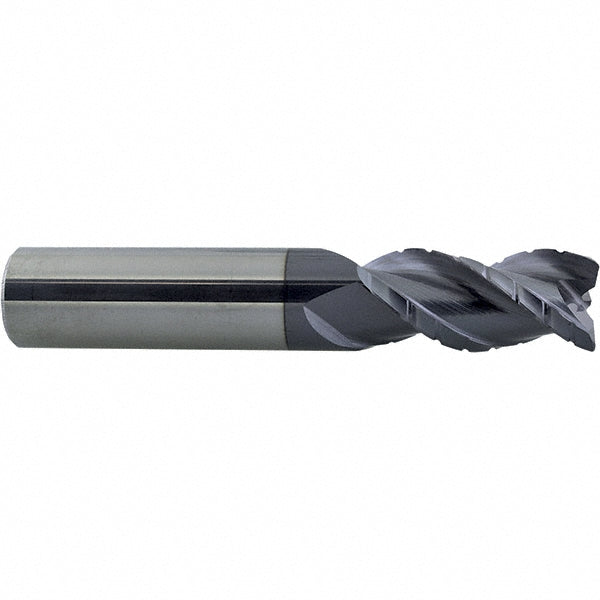

0.2500" 3-Flute Solid Carbide Corner Radius End Mill, AlTiN - ProMax 119-01624

MFR# 119-01624Series 119

$48.23List $61.86 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes3

MaterialSolid Carbide

CoatingAlTiN

Description

The ProMax 119-01624 is a 0.2500 3-flute Solid Carbide (Micrograin) corner radius end mill with a AlTiN finish for longer tool life. 3/8 length of cut. Series 119.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Corner radius0.0200

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Helix angle40

Length of cut in3/8

Material gradeMicrograin

Maximum helix angle40

Mill diameter0.2500

Mill diameter frac in1/4

Mill diameter tolerance+0.000000 to -0.002000 in

Number of flutes3

Shank diameter in1/4

Shank diameter tolerance-0.0001/-0.0004 in

Shank typeStraight-Cylindrical

Single or double endSingle
