ProMax

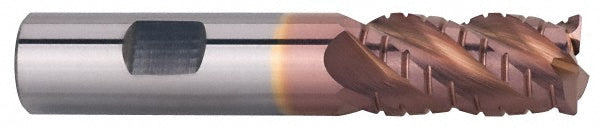

0.2813" 4-Flute Corner Radius End Mill, TiCN - ProMax 120-01812
MFR# 120-01812Series 120
$76.32List $97.88
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
CoatingTiCN
Description
The ProMax 120-01812 is a 0.2813 4-flute corner radius end mill with a TiCN finish for longer tool life. 3/4 length of cut. Series 120.
Specifications
ChipbreakerNo
Coating finishTiCN
Corner radius0.0200
Cutting directionRight Hand
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Helix angle40
Length of cut in3/4
Length typeRegular
Mill diameter0.2813
Mill diameter tolerance+0.000000 to -0.003000 in
Number of flutes4
Shank diameter in5/16
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeWeldon Flat
Single or double endSingle
