ProMax

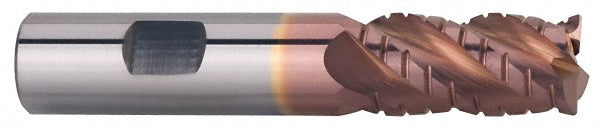

0.3438" 4-Flute Solid Carbide Corner Radius End Mill, TiCN - ProMax 120-02222
MFR# 120-02222Series 120
$75.87List $97.31
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingTiCN
Description
The ProMax 120-02222 is a 0.3438 4-flute Solid Carbide corner radius end mill with a TiCN finish for longer tool life. 5/8 length of cut. Series 120.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Corner radius0.0200
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Helix angle40
Length of cut in5/8
Length typeStub
Maximum helix angle40
Mill diameter0.3438
Mill diameter tolerance+0.000000 to -0.003000 in
Number of flutes4
Shank diameter in3/8
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeWeldon Flat
Single or double endSingle
