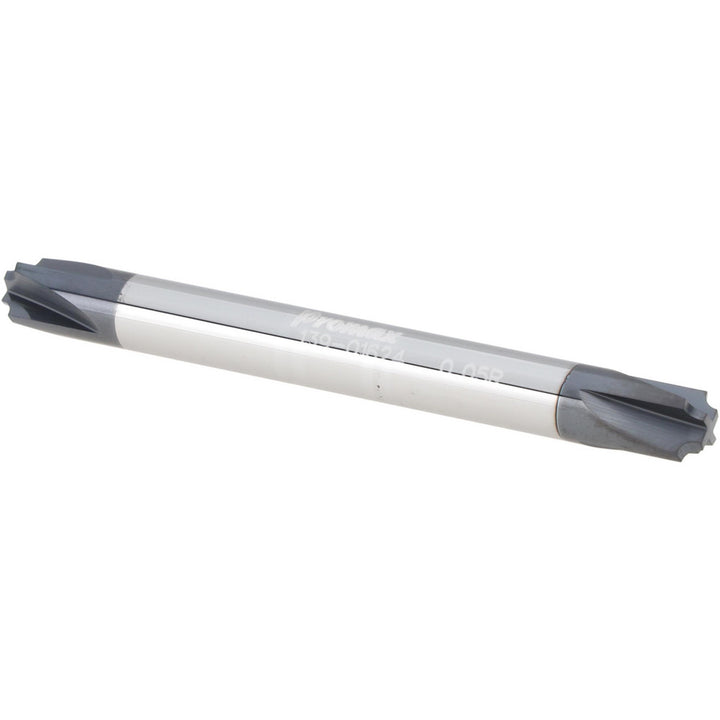

1/4" 4-Flute Solid Carbide Corner Rounding End Mill, AlTiN - ProMax 139-01624

ProMax

1/4" 4-Flute Solid Carbide Corner Rounding End Mill, AlTiN - ProMax 139-01624

MFR# 139-01624Series 139

$66.38List $85.13 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The ProMax 139-01624 is a 1/4 4-flute Solid Carbide (Micrograin) corner rounding end mill with a AlTiN finish for longer tool life. Series 139.

Specifications

Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Flute directionRight Hand
Material gradeMicrograin
Mill diameter in1/4
Number of flutes4
Radius0.0500
Radius tolerance0.001
Shank diameter in1/4
Single or double endDouble
Tip diameter0.1450
