9/16" 4-Flute Solid Carbide Square End Mill, AlTiN - ProMax 155-03614

ProMax

9/16" 4-Flute Solid Carbide Square End Mill, AlTiN - ProMax 155-03614

MFR# 155-03614Series 155

$105.30List $135.06 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter9/16
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

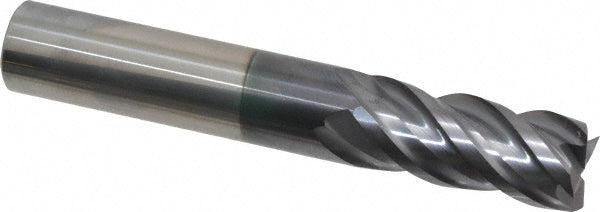

The ProMax 155-03614 is a 9/16 4-flute Solid Carbide (Micrograin) square end mill. 1-1/4 length of cut, 3-1/2 overall length. Series 155.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle35
Length of cut in1-1/4
Length typeRegular
Material gradeMicrograin
Mill diameter in9/16
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in3-1/2
Shank diameter in9/16
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeSquare
Variable helixNo
Variable indexNo
