ProMax

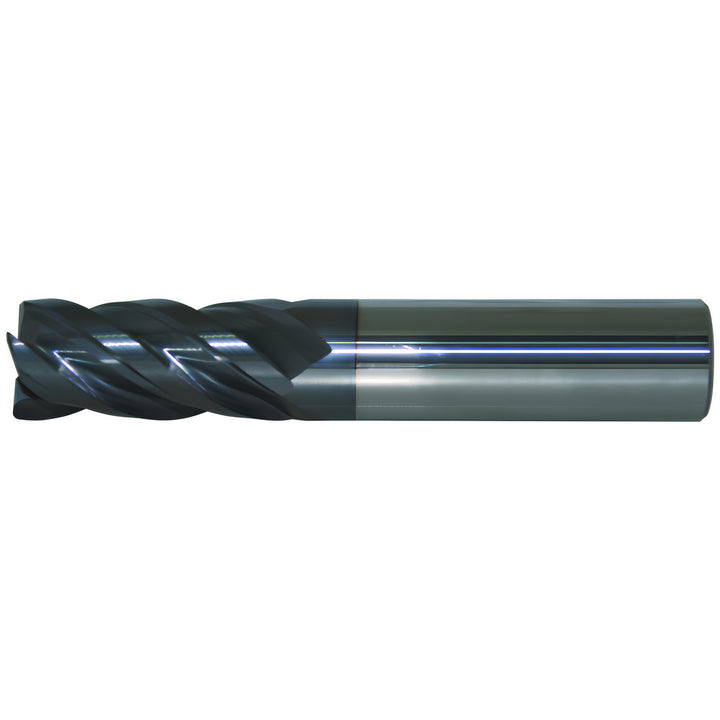

1/2" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - ProMax 156-32824

MFR# 156-32824Series 156

$70.35List $88.18 Save 20%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The ProMax 156-32824 is a 1/2 4-flute Solid Carbide (Micrograin) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, superalloys & titanium. 5/8 length of cut, 2-3/4 overall length. Series 156.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius0.0200

Corner radius tolerance-0.0010 to 0.0010 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholder

Helix styleHigh

Length of cut in5/8

Length typeShort

Material applicationSteel; Stainless Steel; Superalloys & Titanium

Material gradeMicrograin

Material removal typeRoughing & Finishing

Mill diameter in1/2

Mill diameter tolerance-0.0020 to 0.0000 in

Number of flutes4

Overall length in2-3/4

PitchCoarse

Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium

Shank diameter in7/16

Shank diameter tolerance-0.0001 to -0.0040 in

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexYes
