ProMax

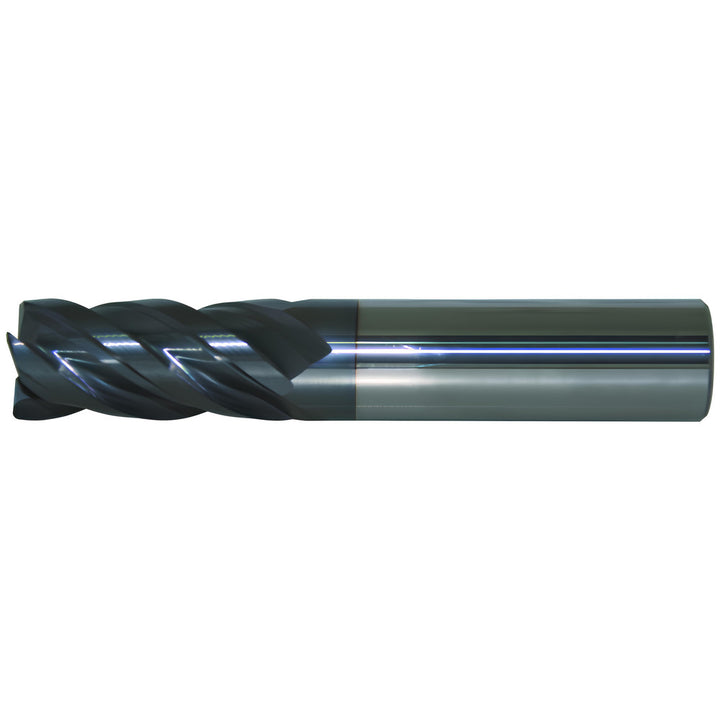

1" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - ProMax 156-44824

MFR# 156-44824Series 156

$155.97List $195.51 Save 20%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The ProMax 156-44824 is a 1 4-flute Solid Carbide (Micrograin) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, superalloys & titanium. 1 length of cut, 3 overall length. Series 156.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius0.0300

Corner radius tolerance-0.0010 to 0.0010 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholder

Helix styleHigh

Length of cut in1

Length typeStub

Material applicationSteel; Stainless Steel; Superalloys & Titanium

Material gradeMicrograin

Material removal typeRoughing & Finishing

Mill diameter in1

Mill diameter tolerance-0.0020 to 0.0000 in

Number of flutes4

Overall length in3

PitchCoarse

Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium

Shank diameter in3/4

Shank diameter tolerance-0.0001 to -0.0040 in

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexYes
