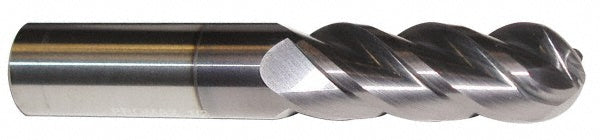

1in" 4-Flute Solid Carbide Ball End Mill, AlTiN - ProMax 157-06434
MFR# 157-06434Series 157
$431.97List $554.02
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1in
Flutes4
MaterialSolid Carbide
CoatingAlTiN
Description
The ProMax 157-06434 is a 1in 4-flute Solid Carbide (Submicron) ball end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 2-3/4in length of cut, 5in overall length. Series 157.
Specifications
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle40
Helix styleHigh
Length of cut in2-3/4in
Length typeStandard
Manufacturers catalog number157-06434
Material gradeSubmicron
Material removal typeRoughing & Finishing
Mill diameter in1in
Mill diameter tolerance+0.0000/-0.0020 in
Neck length0.0000
Nose radius0.5000
Number of flutes4
Overall length in5in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Reach length2.7500
Shank diameter in1in
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
