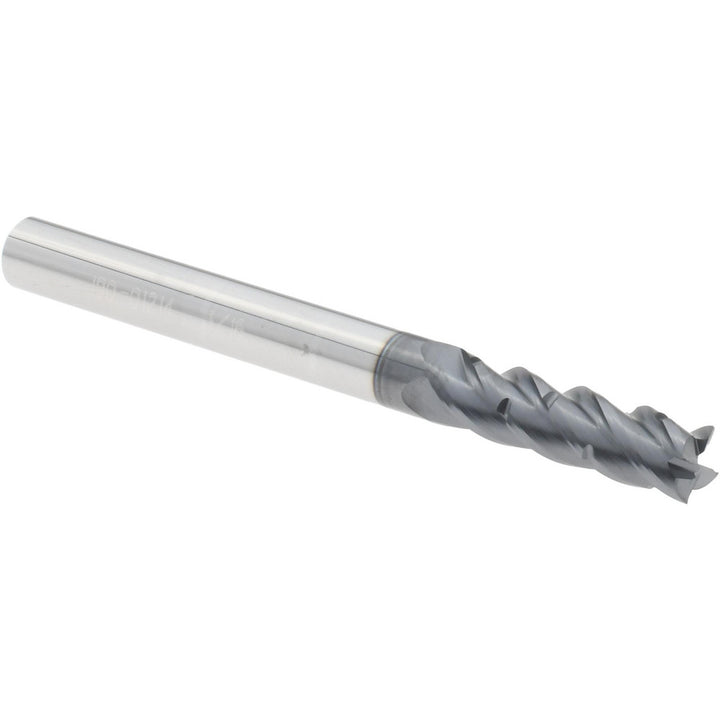

0.1875" 4-Flute Solid Carbide Square End Mill, AlTiN - ProMax 190-01214

ProMax

0.1875" 4-Flute Solid Carbide Square End Mill, AlTiN - ProMax 190-01214

MFR# 190-01214Series 190

$37.24List $47.77 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The ProMax 190-01214 is a 0.1875 4-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. 5/8 length of cut. Series 190.

Specifications

CentercuttingYes
ChipbreakerYes
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
End typeSquare
Extended reachNo
Flute directionRight Hand
Helix angle40
Length of cut in5/8
Length typeRegular
Material gradeMicrograin
Maximum helix angle40
Mill diameter0.1875
Mill diameter frac in3/16
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Shank diameter in3/16
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeStraight
Single or double endSingle
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Harvey Tool3/16" 4-Flute Solid Carbide Drill Mill End Mill - Harvey Tool 870212 $53.61 Guhring3/16" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9199590047600 $26.36 SGS3/16" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 30002 $21.47 American Tool Service0.1875" 4-Flute Solid Carbide Single End Mill, AlCrN - American Tool Service 610-1875 $39.27
