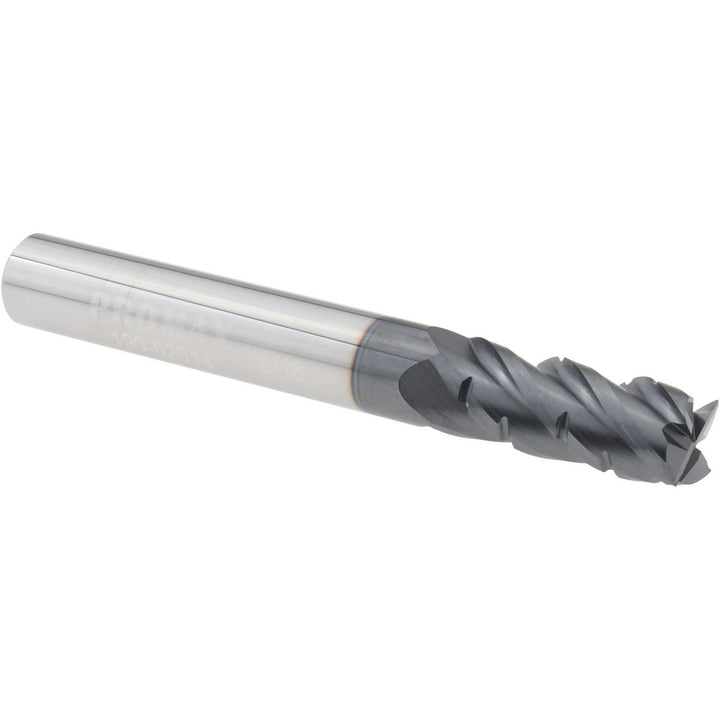

0.3125" 4-Flute Solid Carbide Square End Mill, AlTiN - ProMax 190-02014

MFR# 190-02014Series 190

$64.03List $82.12 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The ProMax 190-02014 is a 0.3125 4-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. 3/4 length of cut. Series 190.

Specifications

CentercuttingYes

ChipbreakerYes

Coating finishAlTiN

Cutting directionRight Hand

End mill materialSolid Carbide

End typeSquare

Extended reachNo

Flute directionRight Hand

Helix angle40

Length of cut in3/4

Length typeRegular

Material gradeMicrograin

Maximum helix angle40

Mill diameter0.3125

Mill diameter frac in5/16

Mill diameter tolerance+0.000/-0.002 in

Number of flutes4

Shank diameter in5/16

Shank diameter tolerance-0.0001/-0.0004 in

Shank typeStraight

Single or double endSingle
