Regal Cutting Tools

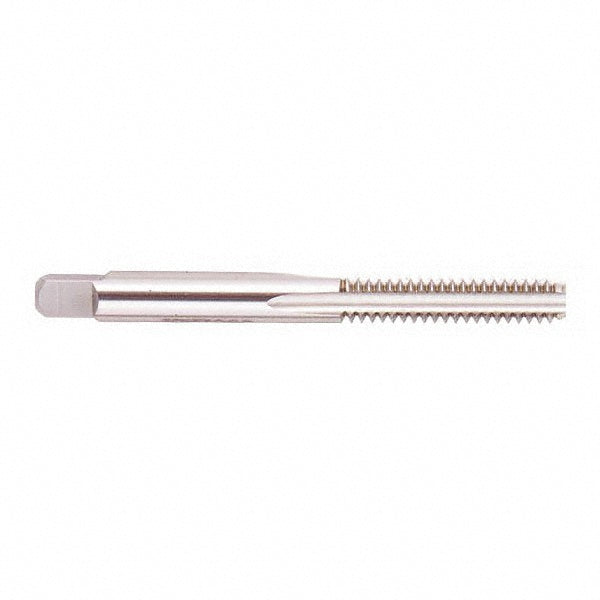

#10-32 UNF High-Speed Steel Standard Tap - Regal Cutting Tools 014539AS
MFR# 014539AS
$7.77List $9.45
Save 17%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size#10-32
Description
The Regal Cutting Tools 014539AS is a #10-32 UNF High-Speed Steel Standard tap. 4 flutes.
Specifications
ChamferBottoming
Coolant throughNo
MaterialHigh-Speed Steel
Number of flutes4
Overall length in2-3/8
OversizeNo
Shank diameter0.1940
Square size0.1520
Tap typeStandard
Threads per inch32
Thread directionRight Hand
Thread length in7/8
Thread limitH11
Thread size in#10-32
Thread standardUNF
