Regal Cutting Tools

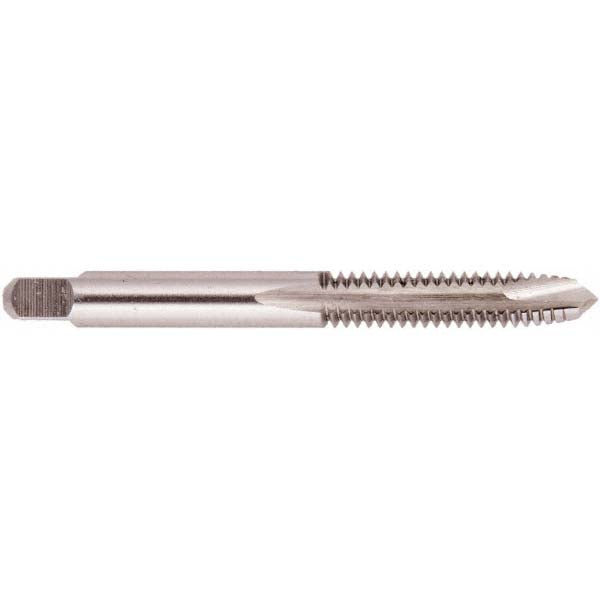

1/4-20 UNC Solid Carbide Spiral Point Tap - Regal Cutting Tools 018631RS
MFR# 018631RS
$96.69List $124.01
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size1/4-20
Description
The Regal Cutting Tools 018631RS is a 1/4-20 UNC Solid Carbide Spiral Point tap. 2 flutes.
Specifications
ChamferPlug
Class of fit3B
Coolant throughNo
MaterialSolid Carbide
Material applicationAluminum; Austenitic Stainless Steel; Cast (Sand) Aluminum; Cast Iron; Die Casting Aluminum; Wrought Aluminum
Number of flutes2
Overall length in2-1/2
OversizeNo
Shank diameter0.2550
StyleSpiral Point
Thread directionRight Hand
Thread length in1
Thread limitH3
Thread size in1/4-20
Thread standardUNC
