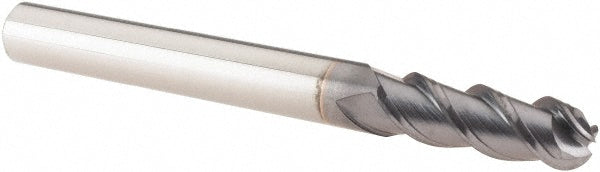

1/4in" 3-Flute Solid Carbide Ball End Mill, AlTiN - Regal Cutting Tools 090222RM

Regal Cutting Tools

1/4in" 3-Flute Solid Carbide Ball End Mill, AlTiN - Regal Cutting Tools 090222RM

MFR# 090222RMSeries Triple Crown

$31.55List $40.47 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4in
Flutes3
MaterialSolid Carbide
CoatingAlTiN

Description

The Regal Cutting Tools 090222RM is a 1/4in 3-flute Solid Carbide (Micrograin) ball end mill with a AlTiN finish for longer tool life. Suited for stainless steel. 3/4in length of cut, 2-1/2in overall length. Series Triple Crown.

Specifications

Additional informationExcellent Cutting Qualities On Stainless Steel, Aluminum And Copper. Increased Tool Life And Higher Cutting Accuracy
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle40
Helix styleHigh
Length of cut in3/4in
Length typeLong
Manufacturers catalog number090222RM
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in1/4in
Neck length0.0000
Nose radius0.1250
Number of flutes3
Overall length in2-1/2in
Primary workpiece materialStainless Steel
Reach length0.7500
Shank diameter in1/4in
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
