Rego-Fix

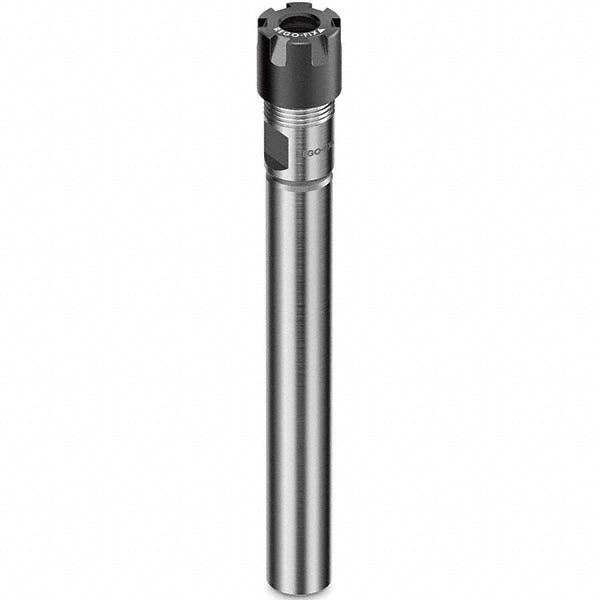

ER16 ER Collet Collet Chuck - Rego-Fix 2612.21650
MFR# 2612.21650
$201.12List $216.00
Save 6%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Rego-Fix 2612.21650 is a ER16 ER Collet.
Specifications
Actuator typeWrench
Additional informationWith Hi-Q Nut
Collet nut diameter (mm)22.00
Collet seriesER16
Collet systemER
Coolant typeThrough-Spindle
Locknut diameter0.8668
Maximum collet capacity (mm)10.00
Minimum collet capacity in1/2
Overall length (mm)118.50
Projection (mm)80.00
Shank diameter (mm)12.00
Shank length (mm)80.00
Shank typeStraight
Through coolantYes
Tir0.000100
Tir mum3.00
TypeER Collet
