Rego-Fix

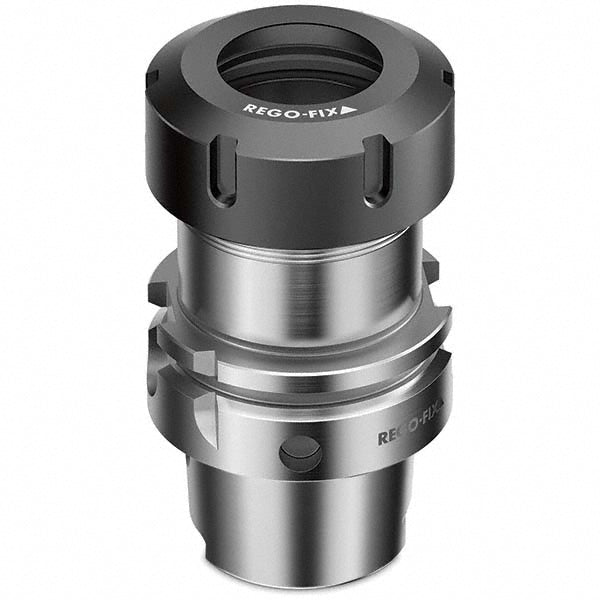

HSK63 ER Collet Collet Chuck - Rego-Fix 4563.11650
MFR# 4563.11650
$357.23List $386.00
Save 7%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Rego-Fix 4563.11650 is a HSK63 ER Collet.
Specifications
Actuator typeWrench
Additional informationWith Hi-Q Nut
Collet nut diameter (mm)28.00
Collet seriesER16
Collet systemER
Coolant typeThrough-Spindle
Locknut diameter1.1032
Maximum collet capacity (mm)10.00
Maximum rpm25000
Minimum collet capacity in1/2
Projection (mm)100.00
Shank typeHollow Taper
Taper sizeHSK63
Through coolantYes
Tir0.000100
Tir mum3.00
TypeER Collet
