Reiff & Nestor
1/4-18 NPT High Speed Steel Tap - Reiff & Nestor 46803
MFR# 46803Series 120GS
$41.64List $53.41
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size1/4-18
Description

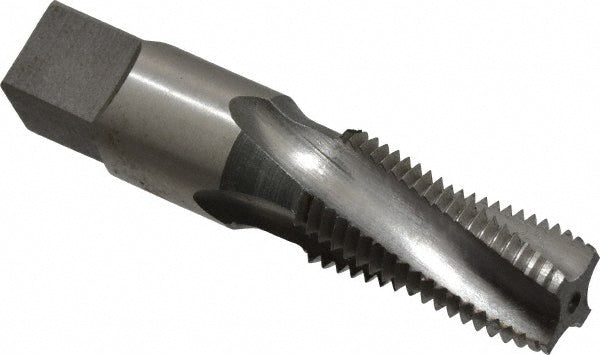

The Reiff & Nestor 46803 is a 1/4-18 NPT High Speed Steel tap. 4 flutes.
Specifications
ChamferRegular
Flute directionRight Hand
Helix angle15
MaterialHigh Speed Steel
Number of flutes4
Overall length in2-7/16
Projection0.4590
Shank diameter0.5625
Square length in7/16
Square size0.4210
Threads per inch18.0
Thread length in1-1/16
Thread size in1/4-18
Thread standardNPT
