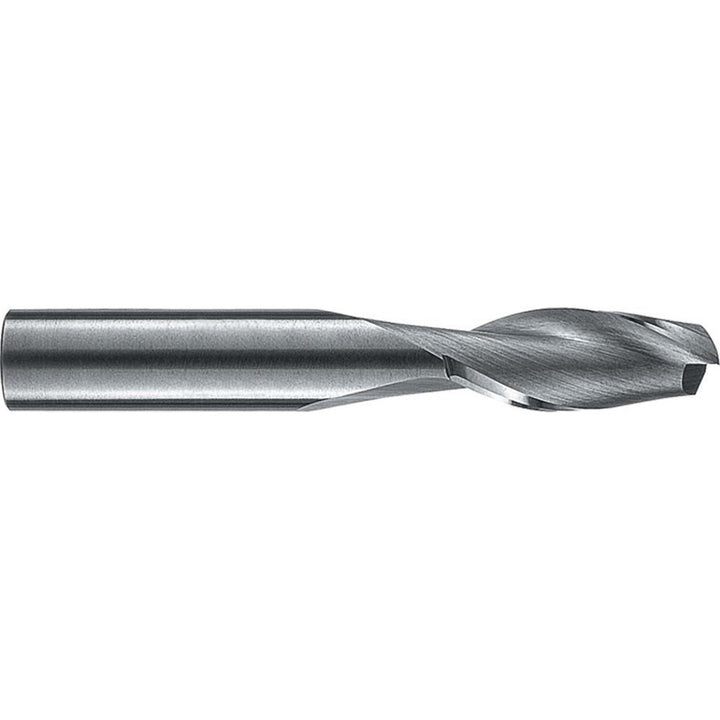

27/64" 2-Flute Solid Carbide Square End Mill - RobbJack NR-204-13.5

RobbJack

27/64" 2-Flute Solid Carbide Square End Mill - RobbJack NR-204-13.5

MFR# NR-204-13.5Series NR-204

$103.47List $112.49 Save 8%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter27/64
Flutes2
MaterialSolid Carbide

Description

The RobbJack NR-204-13.5 is a 27/64 2-flute Solid Carbide (C2) square end mill. 1 length of cut, 2-3/4 overall length. Series NR-204.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1
Length typeRegular
Material gradeC2
Mill diameter in27/64
Mill diameter tolerance+0.001/-0.000 in
Number of flutes2
Overall length in2-3/4
Overall length tolerance+0.060/-0.060 in
Shank diameter in7/16
Shank diameter tolerance-0.0001/-0.0002 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
