RobbJack

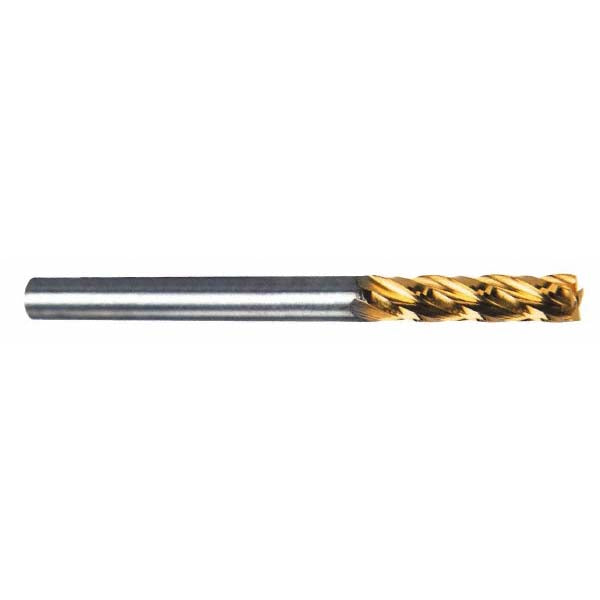

9/32" 4-Flute Solid Carbide Square End Mill, TiN - RobbJack ST-430-09-T
MFR# ST-430-09-TSeries ST-430
$77.22List $83.96
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter9/32
Flutes4
MaterialSolid Carbide
CoatingTiN
Description
The RobbJack ST-430-09-T is a 9/32 4-flute Solid Carbide square end mill with a TiN finish for longer tool life. 3/4 length of cut, 2-1/2 overall length. Series ST-430.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Helix angle30
Length of cut in3/4
Length typeRegular
Mill diameter in9/32
Mill diameter tolerance+0.001/-0.000 in
Number of flutes4
Overall length in2-1/2
Overall length tolerance+0.060/-0.060 in
Shank diameter in5/16
Shank diameter tolerance-0.0001/-0.0002 in
Variable helixNo
Variable indexNo
