Rohm

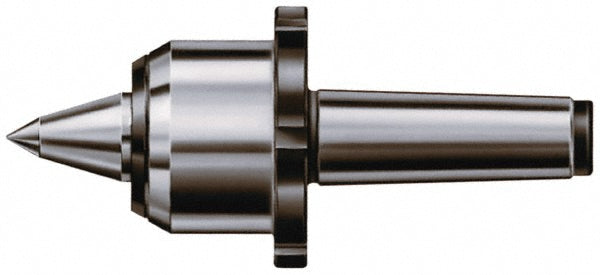

Lathe Center - Rohm 304522
MFR# 304522
$1,994.46List $2,472.00
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Rohm 304522 is a steel lathe center.
Specifications
Accuracy0.005mm
Bearing typeTriple
Carbide tipped pointNo
Gage line diameter (mm)44.40
Head diameter3.6200
Head length3.3200
Included angle60
MaterialSteel
Maximum rpm6000
Maximum workpiece weight kg2000.00
Maximum workpiece weight lb2200.00
Overall length11.0000
Point diameter1.6500
Point length2.3230
Point styleLong
Point to gauge line (mm)150.00
Shank diameter in1-3/4
Shank typeTaper
Taper sizeMT5
